Category Archives: DAX Functions

DAX Error: The Expression Refers to Multiple Columns. Multiple Columns Cannot Be Converted to a Scalar Value.

Promotion: Use code DAXERROR to save 10% off my course. Module 1 is free.

Sometimes, when working with DAX, you might get the following error:

The expression refers to multiple columns. Multiple columns cannot be converted to a scalar value.

This error occurs whenever the DAX engine was expecting a single value, or scalar, and instead received a table of values instead. This is an easy error to make because many DAX functions, such as FILTER, SUMMARIZE and ALL, return table values. There are three situations where this error commonly occurs:

  1. Assigning a table value to a measure or calculated column
  2. Forgetting to use a DAX aggregation
  3. Treating ALL or FILTER as an action, not a function

In the rest of the post, we’ll cover each scenario and how to fix it.

Assigning a table value to a measure or calculated column

Let’s say that you were doing some analysis on the products table in the AdventureWorks sample database. In this case, maybe you want to only look at the black products. So you create a measure with the following code:

BlackProducts = FILTER(Products, Products[Color] = “Black”)


One solution to this problem is instead of assigning the code to a measure, which is intended to display a single value, you can create a calculated table instead.

To do so, go to Modeling –> New table in Power BI Desktop. Then ender the same code as before but for the calculated table. Now you will see a table filtered accordingly.

Forgetting to use a DAX aggregation

Now, what if we actually did want a single value instead of a table? Let’s say we want to count the number of black products. In that case, we could wrap our code in an aggregation function, such as COUNTROWS which can take in a table and return a single value.

CountOfBlackProducts = COUNTROWS(FILTER(Products, Products[Color] = “Black”))

This code will return the count of all products, but only if they have black as the color.

Treating ALL or FILTER as an action, not a function

Sometimes, people will try to use functions like ALL or FILTER to filter information on the report. By themselves, these functions actually return a table. However, when they are used with CALCULATE and CALCULATETABLE then you can use them to filter your data appropriately.

Want to learn more?

If you want to learn more about DAX, then check out my free learning path and my paid Pluralsight course.

DAX error: A function ‘XXXX’ has been used in a True/False expression that is used as a table filter expression. This is not allowed.

Promotion: Use code DAXERROR  to save 10% off my course. Module 1 is free.

Whenever you start trying to use more complicated filters in the CALCULATE or CALCULATETABLE functions in DAX, you may start to get the following error:

A function 'MAX' has been used in a True/False expression that is used as a table filter expression. This is not allowed.


The function in single quotes may vary. Instead of MAX, it could be SUM, MIN, AVERAGE or nearly anything. Sometimes, you may not even be using a function and the error will just say CALCULATE is the problem:

A function 'CALCULATE' has been used in a True/False expression that is used as a table filter expression. This is not allowed.


What causes this error?

The error is caused by using a TRUE/FALSE expression, something that evaluates to TRUE or FALSE, to filter the table in a way that CALCULATE or CALCULATETABLE doesn’t support.  So the error is saying you can’t use a boolean comparison to filter your table except in very specific circumstances.

The following comparisons are not supported:

    1. Comparing to a column to a measure. SalesHeader[TerritoryID] = [LargestTerritory]
    2. Comparing a column to a an aggregate value. SalesHeader[TerritoryID] = MAX(TerritoryID[TerritoryID]])
    3. Comparing a column to a What-If parameter. SalesHeader[TerritoryID] =

TerritoryParameter[TerritoryParameter Value]

In fact, you only have three options if you want to filter a column in a CALCULATE/CALCULATETABLE function:

  1. Compare the column to a static value. SalesHeader[TerritoryID] = 6
  2. Use variables to create a static value. VAR LargestTerritory = MAX(SalesHeader[TerritoryID])
  3. Use a FILTER function instead of a true/false expression. FILTER(SalesHeader, SalesHeader[TerritoryID] = [LargestTerritory])

This is because CALCULATE was designed for safety and performance. Complex row based comparisons can dramatically affect performance. So, in order to do more complex comparisons, you have to take the safety feature off and use the FILTER function.

How do I fix it?

In order to fix the issue, wrap your expression in the FILTER function. To use the FILTER function, you need to pass in the table you want to filter, and then a TRUE/FALSE expression to determine which rows get return. So, let’s say we had the following code:

CALCULATE (
    SUM ( SalesHeader[TotalDue] ),
    SalesHeader[TerritoryID] = [LargestTerritory]
)

to use the FILTER function, we would use this:

CALCULATE (
    SUM ( SalesHeader[TotalDue] ),
    FILTER ( ALL ( SalesHeader[TerritoryID] ), SalesHeader[TerritoryID] =    [LargestTerritory] )
)

The ALL function isn’t strictly necessary, but normally when we filter a single column in a CALCULATE function, it will undo any existing filters on that column. We use ALL here to replicate that behavior. In order to understand the specifics better, check out this article at sqlbi.com

Why DAX is a PITA: part 1

  • So, I think that DAX is a pain in the butt to use and to learn. I talk about that in my intro to DAX presentation, but I think it boils down to the fact that you need a bunch of mental concepts to have a proper mental model, to simulate what DAX will do. This is very deceptive, because it looks like Excel formulas on steroids, but conceptually it’s very different.

Here is the problem with DAX, in a nutshell:

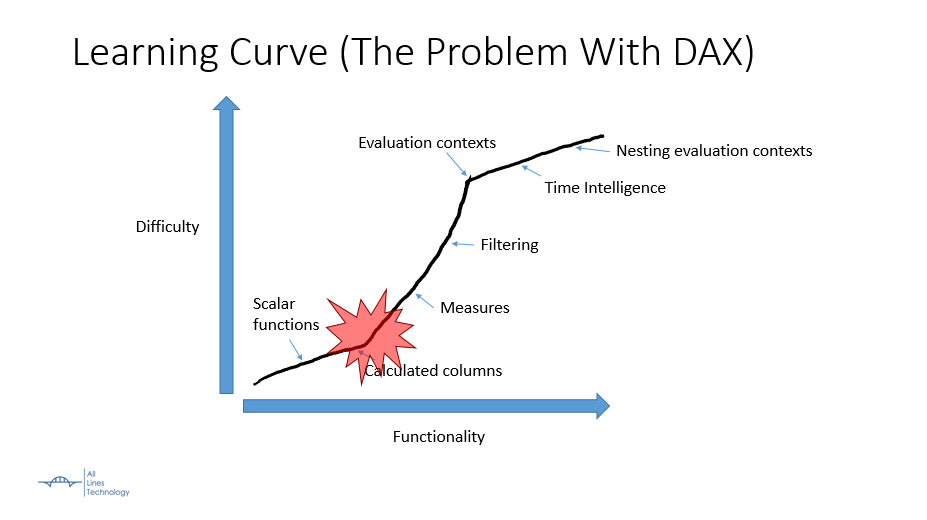

This example below is a perfect example of that sharp rise in learning curve, and dealing with foreign concepts like calculated columns, measures, applied filters, and evaluation contexts.

So, one of the things I’m hoping to catalog are example where DAX is a giant pain if you don’t know what you are doing. People make it look really simple and smooth, and that can be frustrating sometimes. Let’s see more failures!

How do I GROUPBY in DAX?

John Hohengarten asked me a question recently on the SQL Community Slack. He said:

I need to sum an amount column, grouped by a column
Measure 1 :=
GROUPBY (
det,
det[nbr],
    “Total AR Amt Paid calc”SUM ( det[amt] )
)
I’m getting a syntax error

So automatically, something seemed off to me. Measures are designed to return a single value, given the filter context that’s applied to them. That means you almost always need some aggregate function at an outer level. But based on the name, you wouldn’t necessarily expect GROUPBY to return a single value. It would return values for each grouping instance.

If we take a look at the definition for GROUPBY(), we see it returns a table, which makes sense. But if you are new to DAX, this is really unintuitive because DAX works primarily in columns and tables. This is a really hard mental shift, coming from SQL or Excel.

 What do you really want?

None of this made any sense to me. Why would you try to put a GROUPBY in a measure? That’s like trying to return an entire table for a KPI on a dashboard. It just doesn’t make sense. So I asked John what he was trying to do.

He sent me an image of some data he was working with. On the far left is the document id and on the far right is the transaction amount.
Pasted image at 2017_07_06 09_28 AM

He wanted to add another column on the right, that summed up all of the amounts for transactions with the same document. In SQL, you’d probably do this using a Window function with a SUM aggregate, like here.

 Calculated columns versus measures

This highlights another piece of DAX that is unintuitive. You have two ways of adding business logic: calculated columns and measures. The both use DAX, both look similar and are added in slightly different spots.

But semantically and technically, they are very different beasts. Calculated columns are ways of extending the table with new columns. They are very similar to persisted, computed columns in SQL. And they don’t care at all about your filters or front-end, because the data is defined at time of creation or time of refresh. Everything in a calculated column is determined long before you are interacting with them.

Measures on the other hand, are very different. They are kind of like custom aggregate functions, like if you could define your own version of SUM. But to carry the analogy, it would be like if you had a version of SUM that could manipulate the filters you applied in your WHERE clause. It gets weird.

My point is, if you don’t grok the difference between calculated columns and measures, you will never be able to work your way around the problem. You will be forced to grope and stumble, like someone crawling in the dark.

Filter context versus row context

So in this case we’ve determined we actually want to extend the table with a column, not create a free-floating measure. Now we run headlong into our next conceptual problem: evaluation contexts.

In DAX there are two types of evaluation contexts: row contexts and filter contexts. I won’t go too deep here, but they define what a formulas can “see” at any given time, and in DAX there are many ways to manipulate these contexts. This is how a lot of the time intelligence stuff works in DAX.

In this case, because we are dealing with a calculated column, we have only a row context, not filter context. Essentially, the formula can only see stuff in the same row. Additionally, if we use an aggregate like SUM, it only cares about the filter context. But the filter context comes from user interaction. Because this data is defined way before that, there is no filter context.

This is another area, where if you don’t understand these concepts you are SOL. Again, for the newbie, DAX is a pain.

 What’s the solution?

So what is the ultimate solution to his problem? There are probably better ways to do it, but here is a simple solution I figured out.

SUM =
CALCULATE (
    SUM ( Source_data[Amount] ),
    ALL ( Source_data ),
Source_data[Document] = EARLIER ( Source_data[Document] )
)

Walking through it, The CALULATE is used to turn our row context, into a filter context. Then it manipulates that filter context so SUM “sees” only a certain set of rows.

The first manipulation is to run ALL against the table, to undo any filters applied to it. In this case, the only filter is our converted row context. (confused yet?)

The next manipulation is to use EARLIER (which is horribly named) to get the value from the earlier row context. In this case we are filtering ALL the rows, to all of them that have the same document. Then, finally we apply the SUM, which “sees” the newly filtered rows.

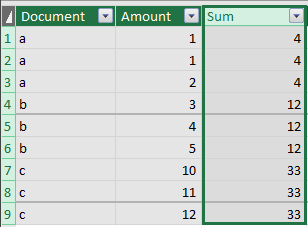

Here is what we get as a result:


 How do we verify that?

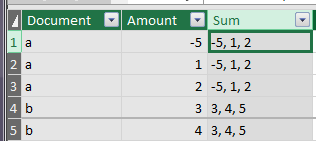

A fourth pain with DAX is that it’s very hard to look at intermediate stages of a process, like you can with SQL or Excel formulas, but in this case we have a way. If we convert our SUM to a CONCATENATEX, we can output all the inputs as a comma separated list. This gives us a slightly better idea of what’s going on.

image (1)

 What’s the point?

My point is, that DAX, despite it’s conciseness and richness is hard to start using. Even basic tasks can require complex concepts, and that was a big frustration point for me. You can’t just google GROUPBY and understand what’s going on.

Again, check out my presentation I did for the PASS BI virtual group. I tried to cover all the annoying parts that people new to DAX will run into. That and buy a book! you’ll need it.
